WF28 26 pin Waterproof Connector,28mm IP67 26 Wire awg 18 Power Cable Aviation Electrical AC DC Circuit Signal LED Heavy Industrial Bulkhead Plug Socket (Female Plug, Male Socket, 26 Pin)
4.7 (42 items)
Limited Time Sale$12.48 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218143597 | Release Date | 2026/05/03 | List Price | $8.32 | Model Number | 218143597 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
WF28 IP67 Waterproof connector, 5 7 10 12 16 17 20 24 26PIN Aviation Connector POWER CABLE AVIATION PLUG SOCKET 5pin, 7pin, 10pin: Rated Current (A): 25A Contact diameter × number: Φ2.5x5 /Φ2.5x7 / Φ2.5x10 Rated voltage (AC.V.): 500V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 1mΩ Wire specification: <3m㎡/13AWG 12pin, 16pin, 17pin: Rated Current (A): 10A Contact diameter × number: Φ1.5x12 / Φ1.5x16 / Φ1.5x17 Rated voltage (AC.V.): 500V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 2.5mΩ Wire specification: <2.0m㎡/14AWG 20pin, 24pin, 26pin: Rated Current (A): 5A Contact diameter × number: Φ1.0x20 / Φ1.0x24 / Φ1.0x26 Rated voltage (AC.V.): 400V Withstanding Voltage (AC.V) 1 minute: 1200V Contact resistance: 5mΩ Wire specification: <0.785m㎡/18AWG Other details: Coupling: Push-pull Insert Material: PPS, max temperature 180° Contact material: Brass (gold-plated) Termination: solder (2 to 10 pin crimp available) Cable outer diameter range: 10-14mm max (PG16)
- Part number: WF28 Serials 26 pin Waterproof Aviation Bulkhead Panel Mount Connector, Termination type: Solder, Gender: Female plug male socket, Panel cutout: 28.5mm
- Contact diameter: Φ1.0x26, Wire specification: <0.785m㎡/18AWG, Default Cable specification: 10-14mm max (PG16)
- Rated current: 5A, Rated voltage (AC.V.): 500V, Weight: 5.6 oz, PLEASE REFER TO 2ND PICTURE FOR SIZE AND PARAMETER DETAILS.

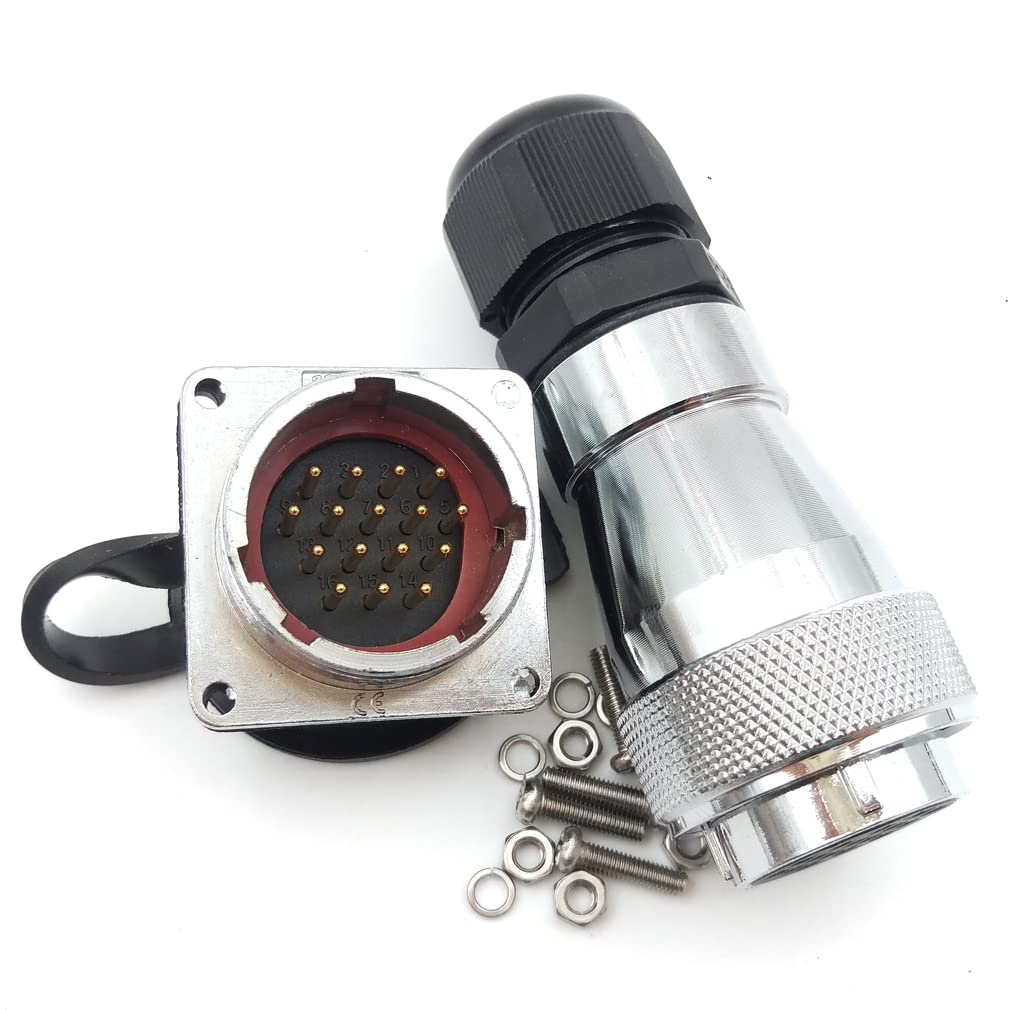

- What's in the package: 1 plug + 1 socket with cap + 4 set screw, Type: Circular Waterproof Aviation Connectors
- Stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.
| Item Weight | 5.6 ounces |
|---|---|
| Manufacturer | FORTTAR |
| Item model number | WF28 |
| Package Dimensions | 6.5 x 4.5 x 1.6 inches |
| Is Discontinued By Manufacturer | No |
