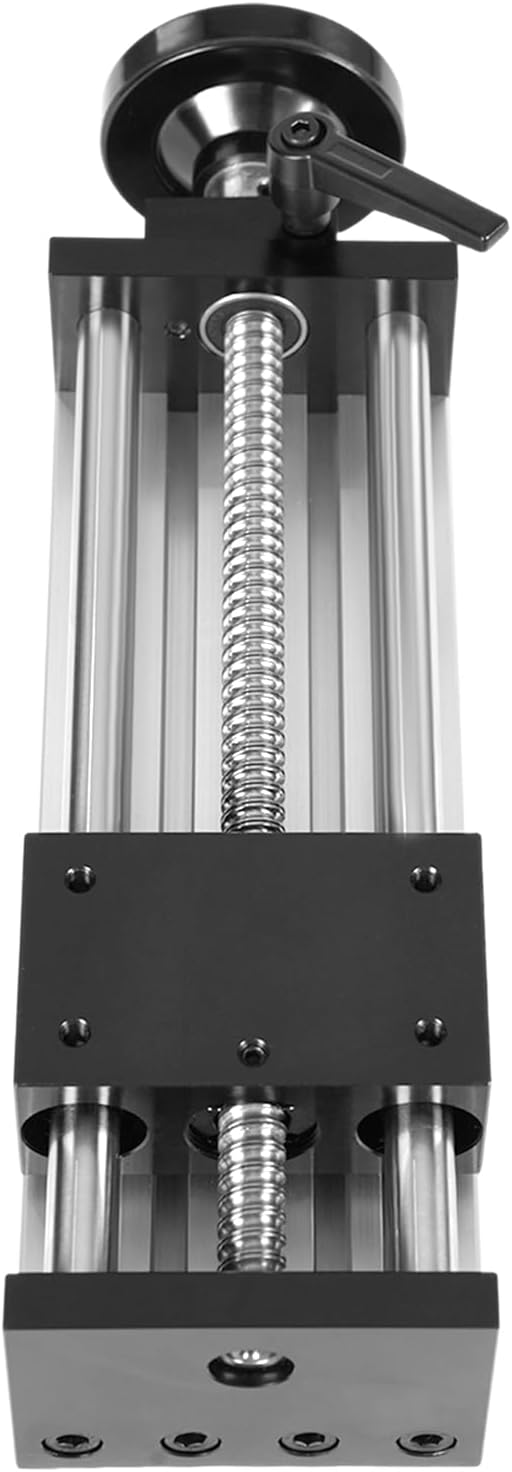

Manual Sliding Table Linear Rail Stage 150mm/5.91in XY Dual Optical Axis Manual Sliding Table Linear Rail Guide Aluminium Alloy Slide Stage for CNC Production Machinery Testing Equipment

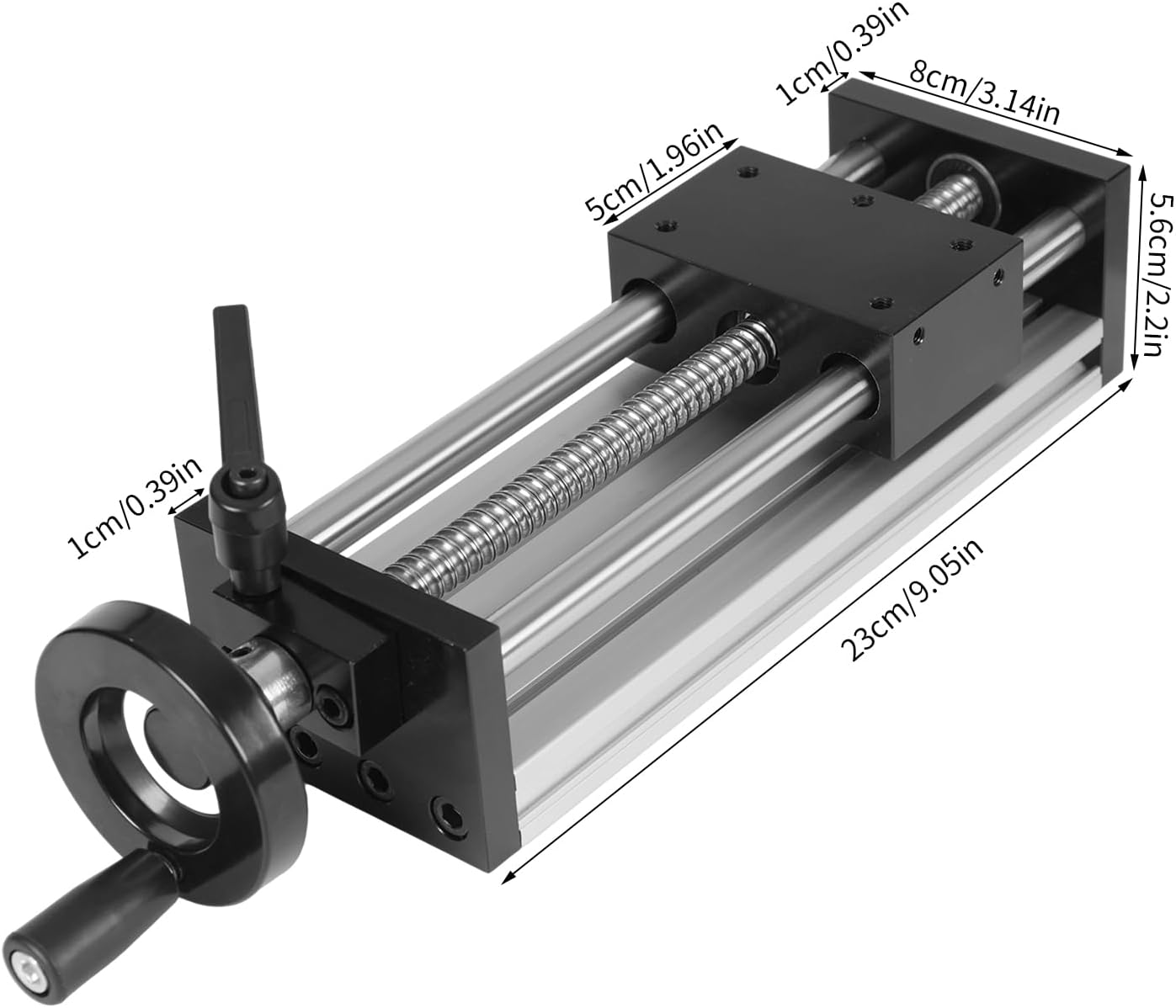

DescriptionOur manual sliding table linear rail guide is a professional tool that is widely used in CNC equipment renovation, production machinery, testing equipment, precision measurement in optical laboratories, and more. Good materials make it sturdy and durable. The dual optical axis design structure and manual control of the sliding table operation direction achieve precise positioning and adjustment. In short, with its accurate and flexible characteristics, it will be your ideal choice!SpecificationMaterial: Aviation AluminumColor: Black, SilverOperation Mode: ManualPositioning Accuracy: ± 0.05mm/0.002inMaximum Horizontal Load Capacity: 30kg/66.14lbsMaximum Vertical Load Capacity: 15kg/33.07lbsEffective Stroke: 150mm/5.91inLead: 5mm/0.2inBearing Hole Diameter: 13mm/0.51inBearing Plate Height: 56mm/2.2inBottom Movable Nut Size: M6Side Mounting Hole Size: M4Installation Hole on the Slider: 4* M5Hole Spacing on Slider: 30*60mm/1.18*2.36inProduct Length: 230mm/9.06inPackaging Size: 31*11*10cm/12.2*4.33*3.94inGross Weight: 2kg/4.41lbsNet Weight: 1.72kg/3.79lbsPackage Included1* Manual Sliding Table Linear Rail Guide

• 【Dual Optical Axis Design】: The two sides adopt a dual optical axis design structure, which makes the accuracy higher and gives the sliding table linear rail stage a larger load capacity and more stable operation.
• 【Ballscrew Design】: This linear guide slide table adopting a ballscrew design, it operates with low noise and will not disturb the work of others.

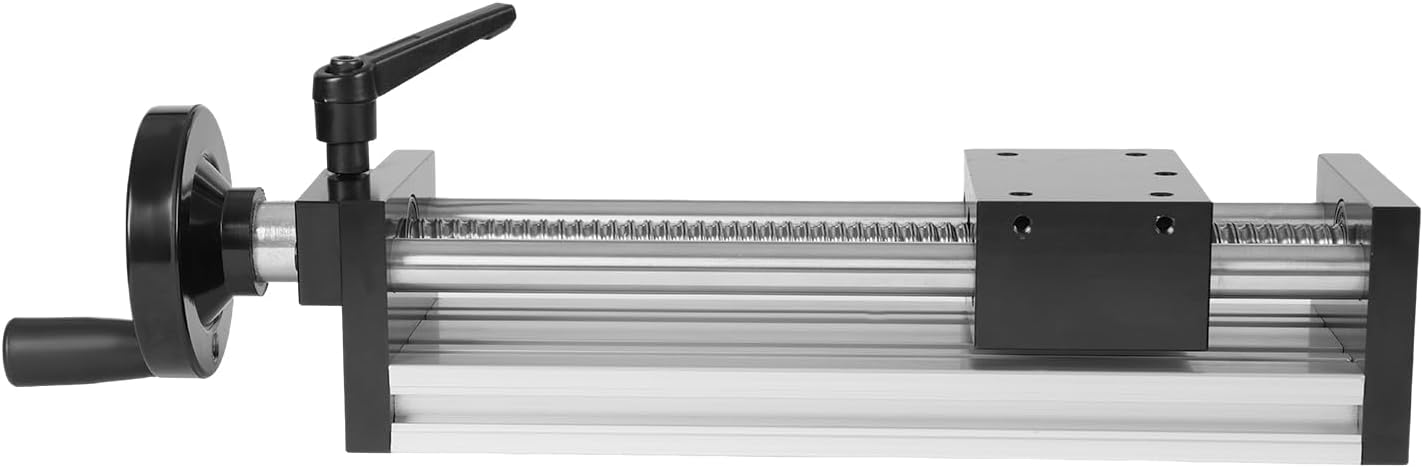

• 【Manual Control】: You can manually control the running direction of the slide to achieve precise positioning and adjustment. The ergonomic handle offers a comfortable grip and the locking mechanism makes the slide less likely to loosen. It does not require complex control systems or power supply, is easy to operate, and has low maintenance costs.
• 【Movable Nuts】: The movable nuts reserved at the bottom facilitates your installation.
• 【Application】: This manual linear stage is used for CNC equipment renovation, production machinery, testing equipment, precision measurement of optical laboratories, fine adjustment of displacement, positioning, and movement of mechanical equipment.
