Geomembrane HDPE Welding Machine 2100W Automatic Hot Wedge Welder for Sealing Thick Membrane 1.0-3.0mm, Plastic Membrane Hot Wedge Welder

Geomembrane HDPE Welding Machine Hot Wedge Welder 2100W Overlap Welding Tool for 1.0-3.0mm Liner The geomembrane welding machine adopts an advanced thermal wedge structure, which has higher heating efficiency and faster welding speed. Especially suitable for 1.0-3.0mm thick high-density polyethylene film. >>> Specification: Product name: Geomembrane welding machine Frequency: 50Hz Power: 2100W Welding speed: 0.4-0.5m/min Heating temperature: 0~450℃ Welding material thickness 1.0mm~3. 0mm Overlap width: 120mm Welding width: 18mm×2 strips Center cavity: 16mm Machine weight: 13kg Gross weight: 19.85 kg >>> Features 1. Advanced intelligent digital temperature control sy stem 2. High-performance high-torque motor combined with double-precision drive motion 3. 3. Advanced “T” arm design and pressure adjustment structure 4. Special stainless steel clamping wheel with strong clamping force 5. Metal Thermal Wedge >>> Packing list: 1 x geomembrane welding unit 1 x aluminum box

• 【Product parameters】: Output voltage: 110V/220V; Frequency: 50Hz; Power: 1800W; Welding speed: 0.5~5m/min; Heating temperature: 0~45 degrees; Welding material thickness: 1.0mm~3.0mm (single layer thickness); Welding width: 14mm*2, inner cavity: 16mm; Welding strength: ≥85% of parent material (tensile strength in cutting direction); Joint width: 120mm; Body weight: 13KG.
• 【Product features】: This machine adopts advanced hot air heating sy stem, small size, light weight, fast speed, perfect welding quality even in corrosive materials and harsh working environment. This machine is specially designed for waterproofing projects such as tunnels, subways, water conservancy, aquaculture, biogas plants, landfills, chemical mining, sewage treatment, roofing construction, etc.

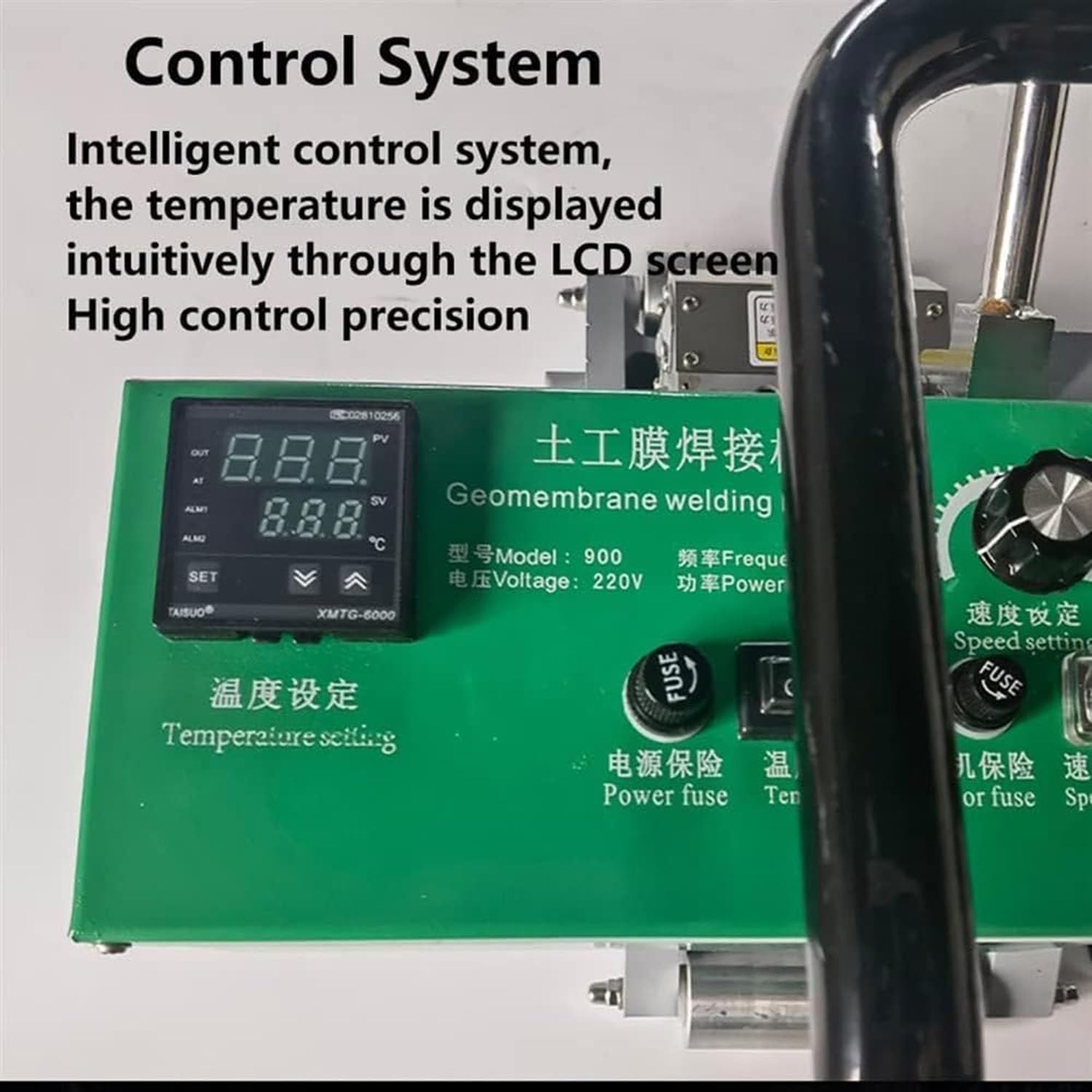

• 【Advantages】: Control sy stem: advanced digital display, precise control, strong protection; Motor sy stem: high power and torque motor combined with dual precision drive movement, enabling it to weld on steep surfaces. The welding speed is adjustable. Pressing roller: Special stainless steel pressing roller has the advantages of high pressure, non-slip and durability; Heating sy stem: Customized metal hot wedge with powerful heating element, higher heating frequency and longer life.

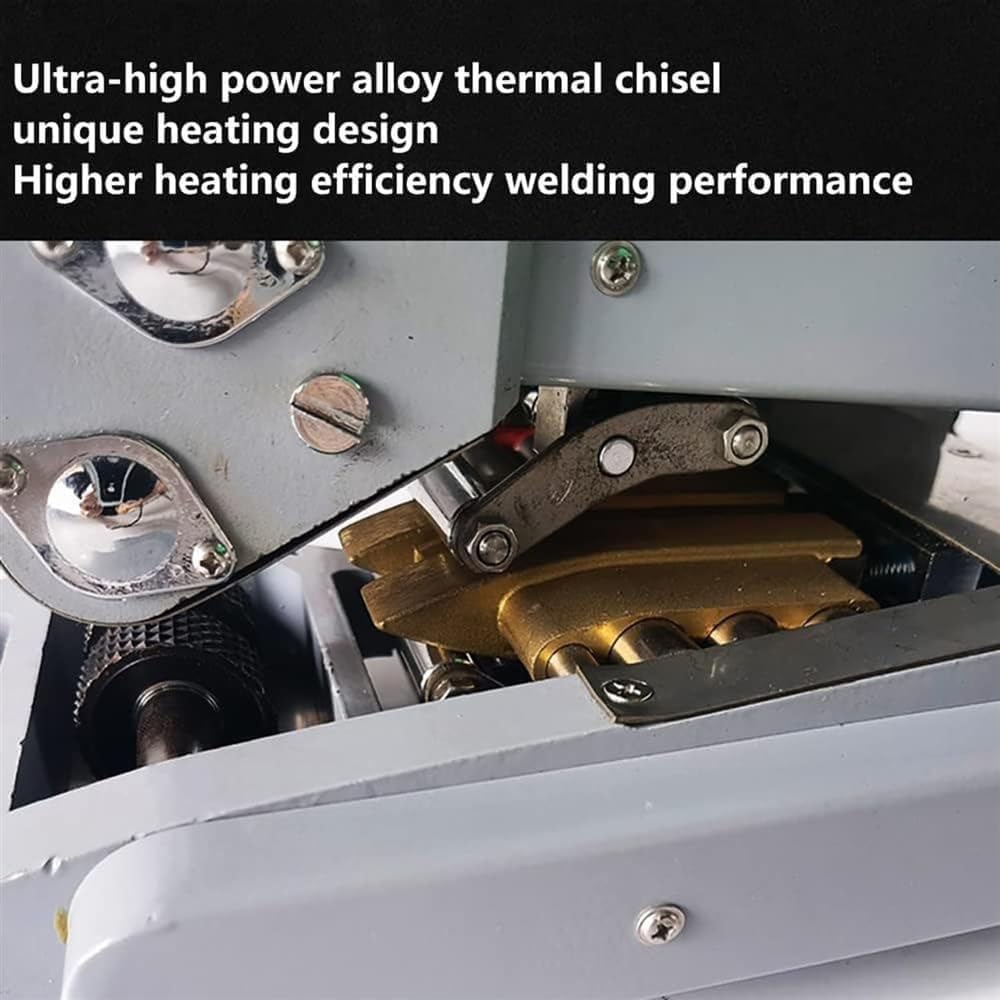

• 【Heating sy stem】: The heating wedge has a stronger structure, which can increase the contact area with the welding material and improve the welding efficiency by 30%. The simple and intuitive, controlling the heating temperature and speed, and monitoring the working parameters in real time.
• 【Application】: Waterproof engineering: tunnels, subways, water conservancy, breeding, solid waste landfills, chemical mining industry, sewage treatment, roofing, etc. It can be used to weld hot melt materials such as HDPE, LDPE, EVA, PVC, ECB, PP, etc.
