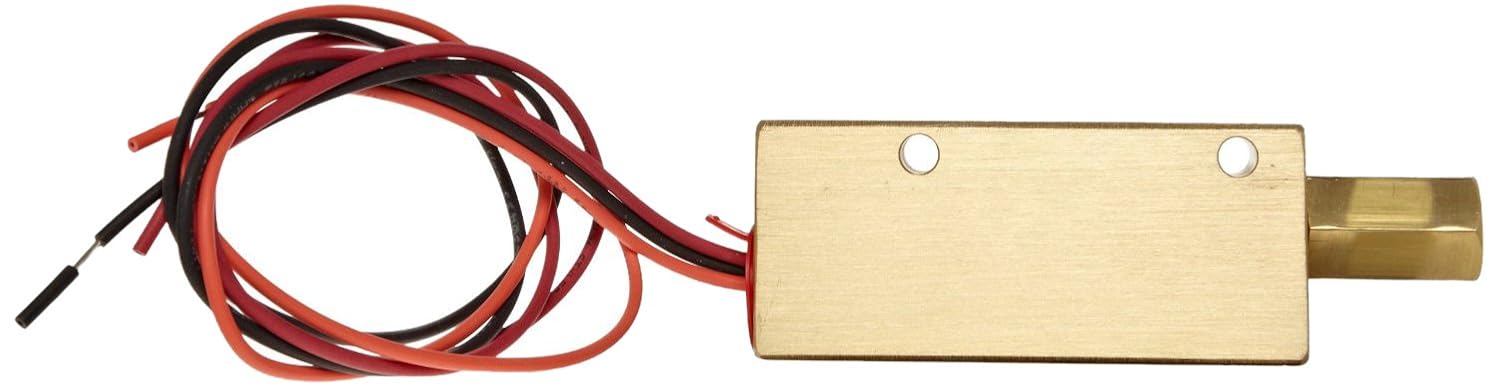

Gems Sensors FS-926 Series Brass Flow Switch, Elbow, Piston Type, 0.075 (300 cc/min) gpm Flow Setting, 1/4" NPT Female
4.9 (85 items)
Limited Time Sale$268.86 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220350745 | Release Date | 2026/05/03 | List Price | $179.24 | Model Number | 220350745 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
FS-926 Series - Low Flow. These two series of precision-calibrated switches provides reliable and consistent performance; repeatability is within 1%. FS-925 and FS-926 units are factory preset for actuation at specified flow rates. These switches provide accurate detection of excessive or insufficient flow rates in such applications as: protecting against loss of fluid flow in hydraulic systems, assuring proper coolant flow in semiconductor processing equipment, monitoring high pressure lubrication systems, and ensuring proper air flow in water/waste systems.
- Wetted Materials: Brass, 316 Stainless Steel, Viton, Epoxy
- Electrical Termination: 18 AWG, 24"-26" long Polymeric Leads
- Switch Type: SPDT (20VA)
- Set Point Differential (Maximum): 0.15
- Recommended Filtration: 50 micron
| Model | 26944 |
|---|---|
| Terminal | Spdt |
| Brand Name | Gems Sensors |
| Unit Count | 1.0 Count |
| Item Weight | 0.5 Kilograms |
| Part Number | 26944 |
| Switch Type | Flow Switch, SPDT |
| Manufacturer | Gems Sensors |
| Material Type | Brass |
| Connector Type | Elbow |
| Number of Items | 1 |
| Specification Met | Ul Recognized, Ul Explosion Proof, Csa Listed, Ce, Fm |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 225 Degrees Fahrenheit |
