8 Teeth RS550 DC Motor 24V 25000RPM High Speed Electric Motor Drive Engine Replacement for Electric Ride On Vehicles Upgrade with Welding Free Connecting Wire

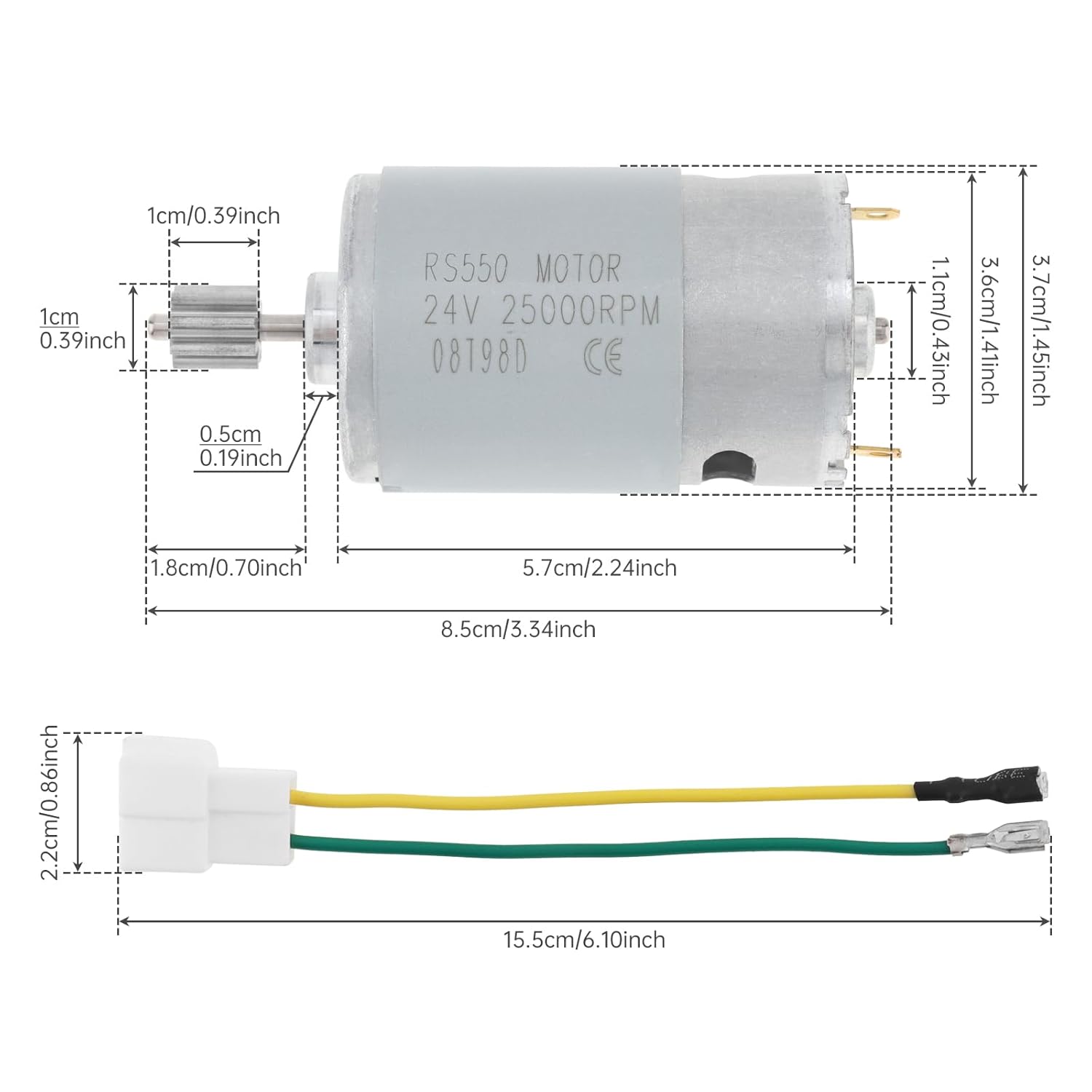

Product Name: 8-19 Teeth RS550 DC MotorModel Number: RS550Voltage: 24V DCNo Load Current: 1.1AWorking Current: 6.53ANo Load Speed: 25000RPMTorque: 1555.3g.cmPower: Max. 200WShaft Diameter: 3.17mmShaft Total Length: 85mmOutput Shaft Length: 18mmGear Teeth: 19 TeethGear Diameter: 16.8mmGear Face Width: 11.3mmCommutation: BrushInstallation Screw Size: M3 (Not included)Installation Screw Spacing: 25mmRotation Direction: CW/CCWStall Current: 45A24V 25000RPM high speed DC motor, applicable voltage range: 12-24V. At 12V, speed is about 12000RPM. Can effectively increase torque and enhance climbing ability for ride-on vehicles.Solidly constructed with stainless steel shell, pure copper coil, high efficiency, strong output power, stable performance. Equipped with cooling fan for good heat dissipation.8-19 Teeth Metal Gear. Precision machined, sturdy and wear-resistant. Already securely assembled on the motor shaft, no manual assembly required.Easy to install. Motor front can be fixed with 2 x M3 screws. Welding-free connecting wire included for easy replacement and installation.Suitable for electric ride-on vehicles, battery-powered cars, electric go-karts, electric ATVs, electric rock crawlers, and various DIY electrical projects. Ideal replacement for damaged or rusty motors.How to choose a motor for electric ride-on vehicles:Confirm motor model is RS550/RS555, or measure motor diameter (approx. 37.2mm), body length (approx. 57mm), and shaft total length (approx. 85mm).Confirm original motor voltage and choose a motor with the same or similar voltage.Confirm gear teeth count, and verify outer diameter and face width of gears are the same or similar.Note:RS550 motors have multi-voltage and multi-gear teeth combinations, adaptable to many electric vehicles. However, due to diverse brands/models, please compare original motor model and gear before purchasing. Must match model for replacement.Rated voltage 24V, normal operating range 12-24V DC. Lower voltage reduces speed. Do not exceed 24V to avoid damage.Motor supports forward/reverse rotation. Reverse direction by swapping positive/negative connections.Can replace RS550 and RS555 model motors (interchangeable).

• High Speed DC Motor: RS550 motor Applicable voltage range: 12-24V, at 12V the speed is about 12000RPM, can effectively increase the torque of your ride on vehicle and enhance its climbing ability

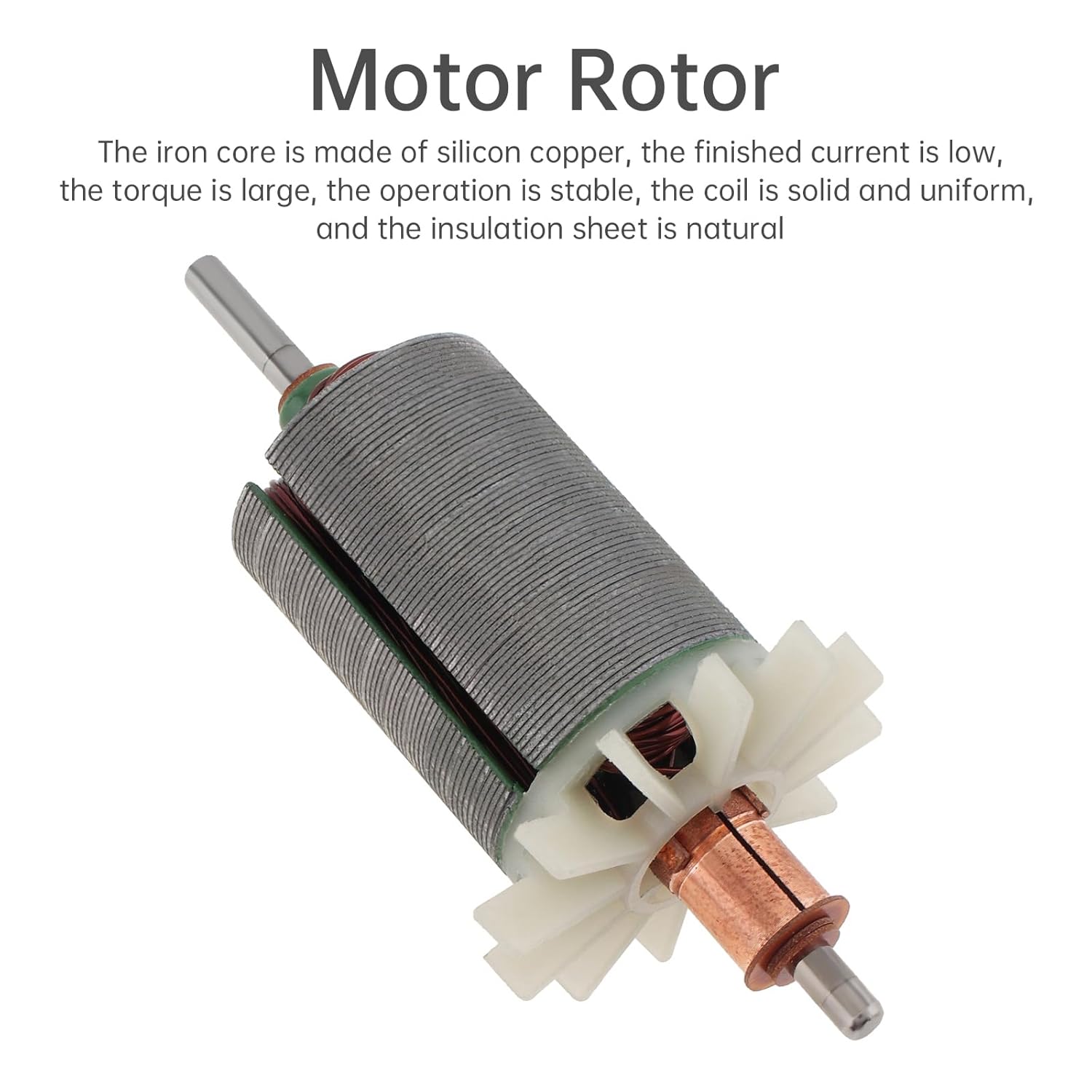

• Material: The gear micro motor shell made of stainless steel material, pure copper coil, high efficiency, strong output power, stable performance, with cooling fan, good heat dissipation effect
• 8 Teeth Metal Gear: The motor front can be fixed with 2 x M3 screws, and equipped with welding free connecting wire, help you easily complete replacement and installation. Please confirm your original motor's diameter before purchase
• Model Number: RS550; Voltage: 24V DC; No Load Current: 1.1A; Working Current: 6.53A; No Load Speed: 25000RPM; Torque: 1555.3g.cm
• Suitable for electric ride on vehicles, battery powered rid on car, electric go karts, electric ATV, electric rock crawler, and various DIY electrical projects
