4 Port 60W PoE Extender Metal, 3 Mode Available,1 in 4 Out PoE+ Repeater, 802.3af 30W PoE Output, 60W 802.3BT Input, 100m/250m PoE Extension for PoE Device, Plug and Play (POE5004-V2)

Note:1. This Extender is not a PoE Switch, it can not work without powered by PoE Switch/PoE injector/PoE NVR.2. 60W total power budget need to powered by 802.3BT source;3. To prevent the water seeping into the extender, please keep PoE extender away wet environment;4.Please don't place any heavy thing on the PoE extender;Overview:POE5004-V2 PoE Extender is a cost effective way to extend the PoE or Ethernet network range beyond 100m/250m(Max). Deliver Ethernet and power for PoE terminal device like WLAN AP, PTZ, IP Camera, etc with no require of local power. Comply with IEEE802.3af/at/BTSpecification:PoE Input: 1 RJ45 PoE portPoE Output: 4 RJ45 PoE portInput Power: 60W Max (802.3BT, PoE++, Hi-PoE)Output Power: 30W Max (802.3af)Output Voltage: 48VTransfer rate: 10/100MbpsNormal Mode: Max 100M PoE Extend DistanceVLAN Mode: Max 100M PoE Extend DistanceExtend Mode: Max 250M PoE Extend DistanceNetwork Cable: Cat5, Cat5e ,Cat6 or betterRepeater Mode: Store and forwardMAC Address Table: 2KPacket Buffer Memory: 48 ByteSwitching Capacity: 400MbpsPoE Standard: IEEE 802.3af/at/BTPower Supply Type: 1/2+,3/6-,ModeA,End-SpanNetwork Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af/at/BTRegulatory Compliance: IEEE802.3af/at/BT, RoHS Compliant, CE, FCCStorage Humidity: 5%~90%, No CondensationOperating temperature: -35～75℃Dimension: 95 * 70 * 21mm(L*W*H)Weight: 173gPackage Include:1 * 4 Port POE Extender (POE5004-V2)

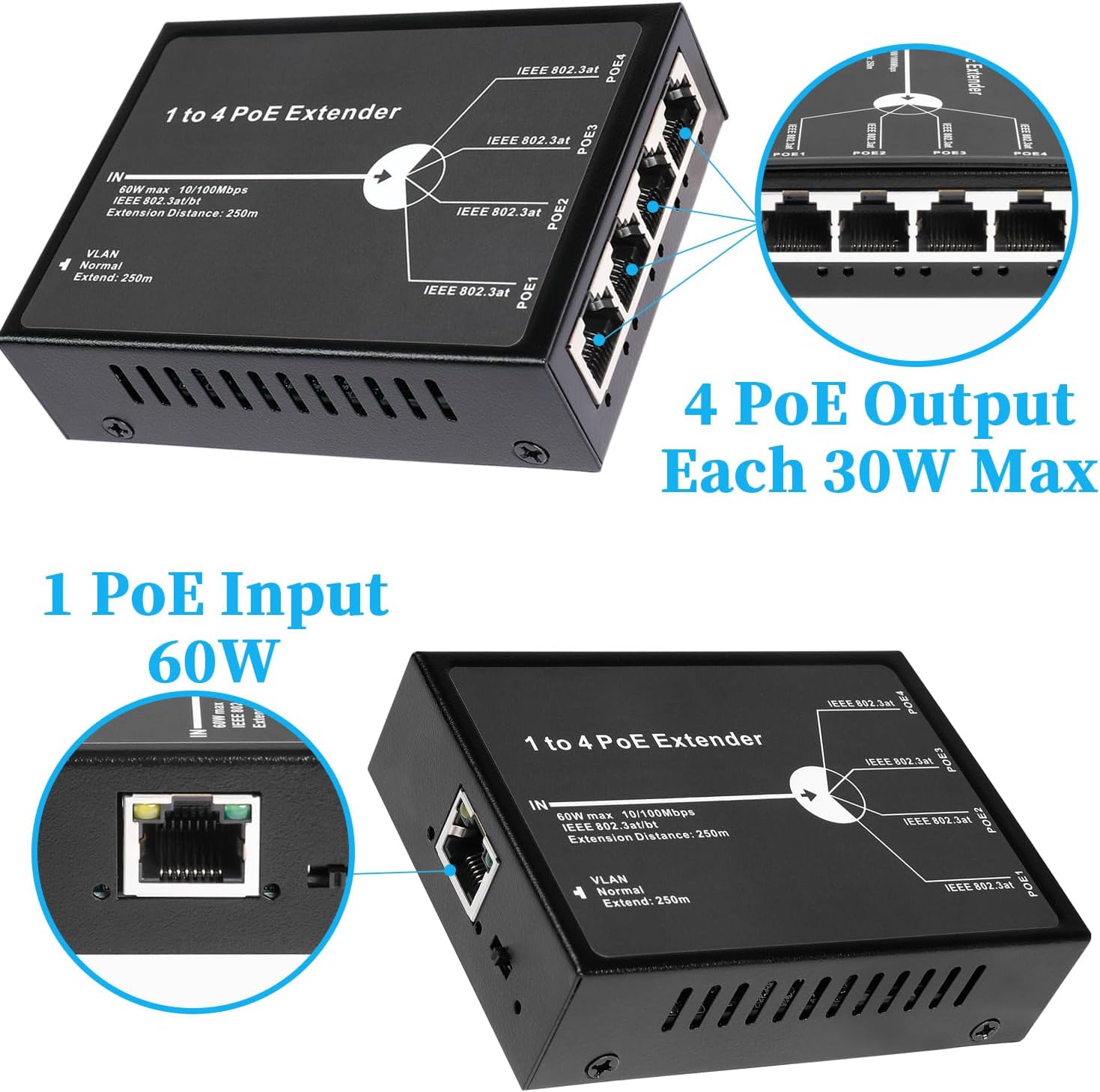

• 【 1 In 4 Out 】Features 1 PoE input and 4 PoE output with total 60W power budget. Each PoE port can deliver Max 30W power and Ethernet for PoE terminal device by using network cable (Cat5,Cat5e,Cat6 or better)
• 【 100m/250m Extension 】Extend the range of PoE or Network by additional 100m or 250m(Max) by different mode. Extenders can be cascaded to reach up to 1000m

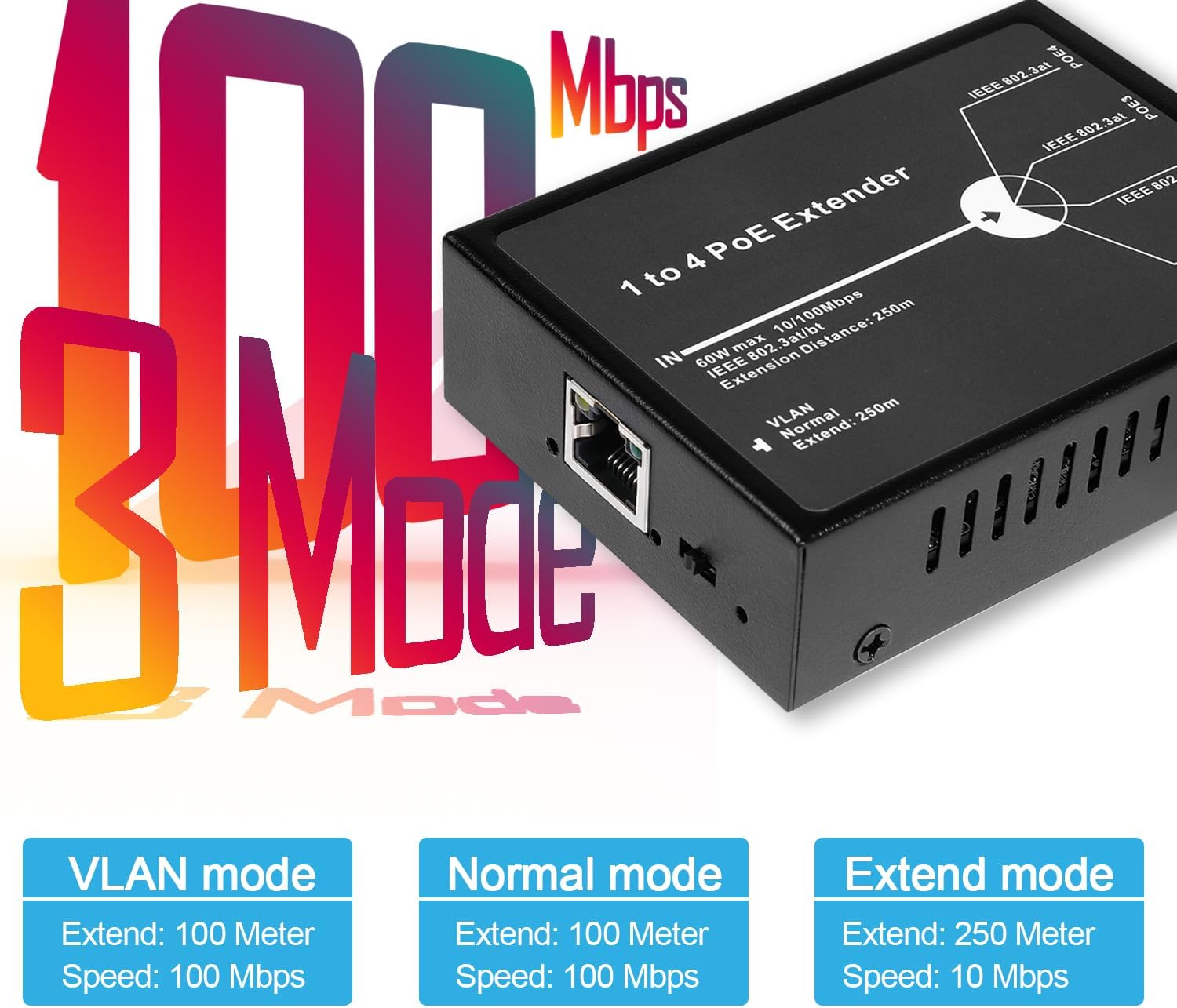

• 【 3 Mode Available 】Feature 3 mode for difference scenarios. Normal Mode: 100Mbps, up to 100m PoE extend; VLAN Mode: 100Mbps, up to 100M PoE extend; Extend Mode: 10Mbps, up to 250M PoE extend.
• 【 Comply IEEE 802.3af/at/BT 】10/100Mbps transfer rate, output comply 802.3at/at/BT standard, detect terminal device and deliver proper power, Max 60W budget need to power by 802.3BT source
• 【 PoE Advantage 】Easy and cost effective to expend PoE and network layout, don't require local DC power; Plug and play after connecting; Auto detects protection, protect PoE device from being damaged by incorrect installation.
